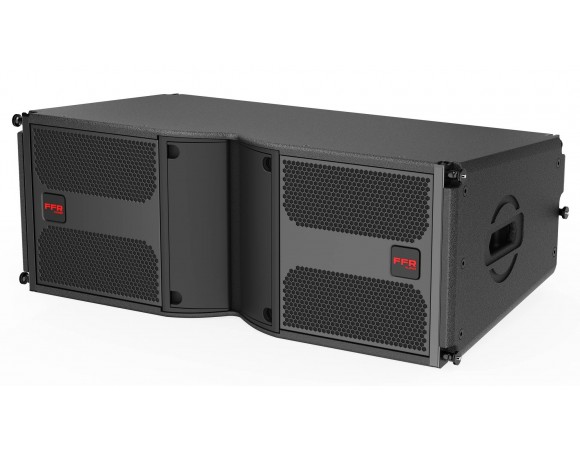

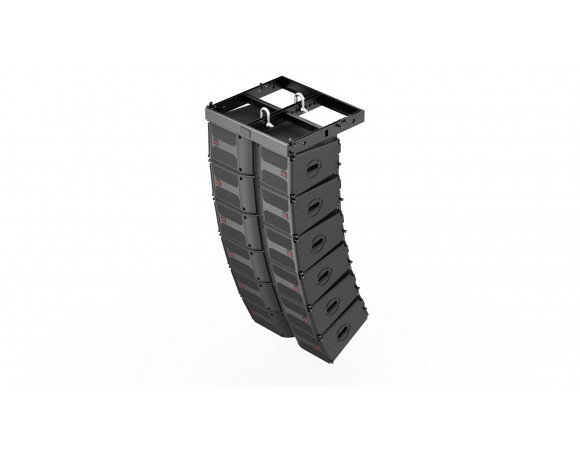

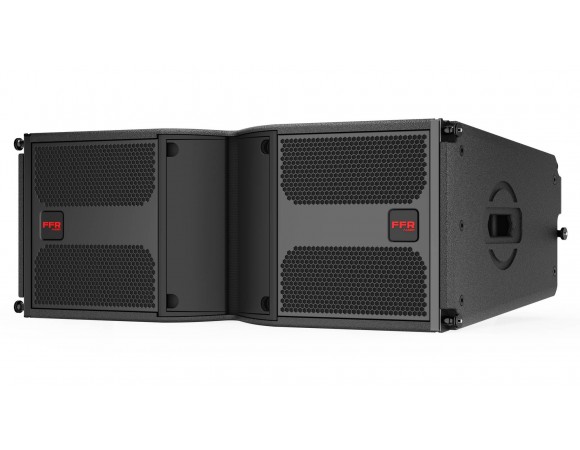

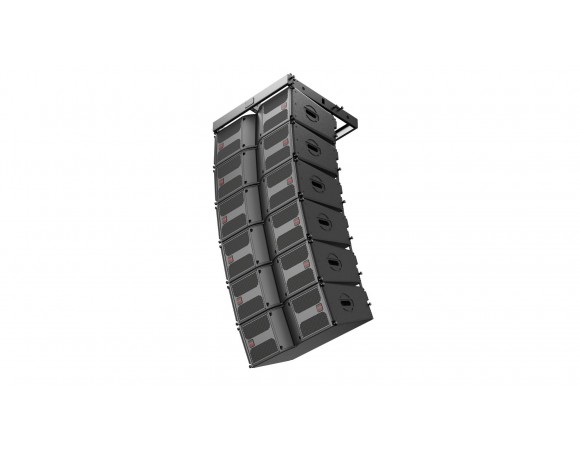

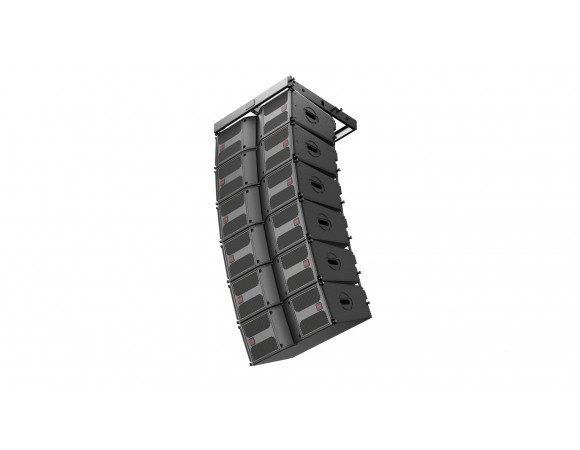

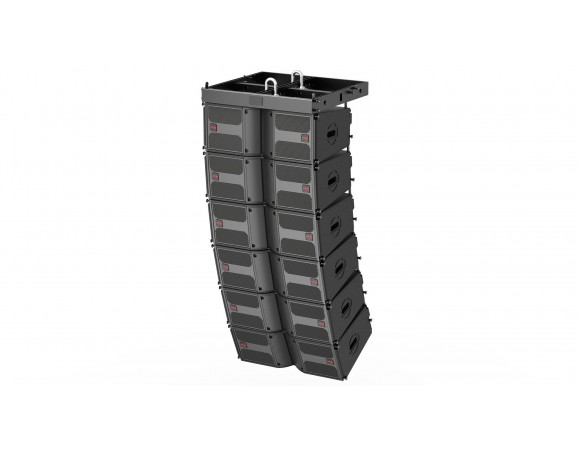

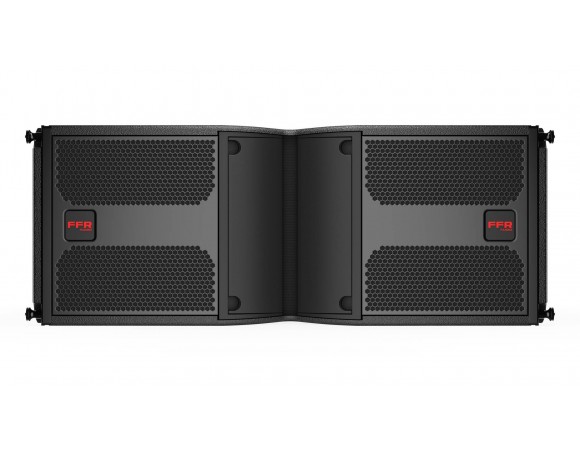

Type: 3-unit 2-way touring line array speaker

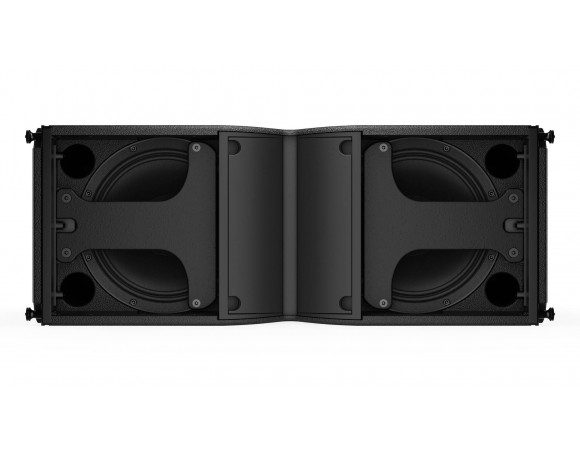

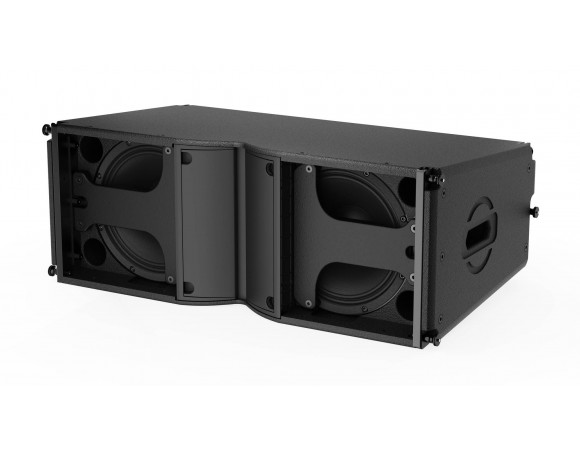

Components:HF:2x3″neo;LF:1x10″neo
Coverage Pattern(-6dB):100°H×10°V
Frequency Response(-10dB)：58Hz—20KHz
Sensitivity(1W@1m):102dB
Max SPL (peak):136dB
Impedance:8 ohms
Power Handling(AES/Peak):700W / 2800W
Frequency division mode:Passive /DSP frequency division is switchable
Connector:SPEAKON NL4×2
Box material:18mm High-quality plywood
Dimensions:W750*D435*H290mm
Weight:27.4kg
