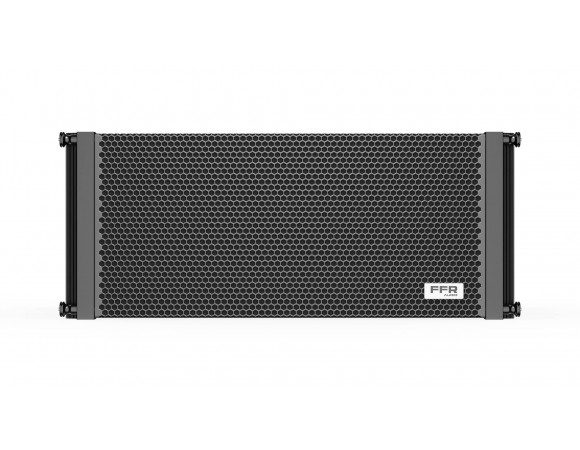

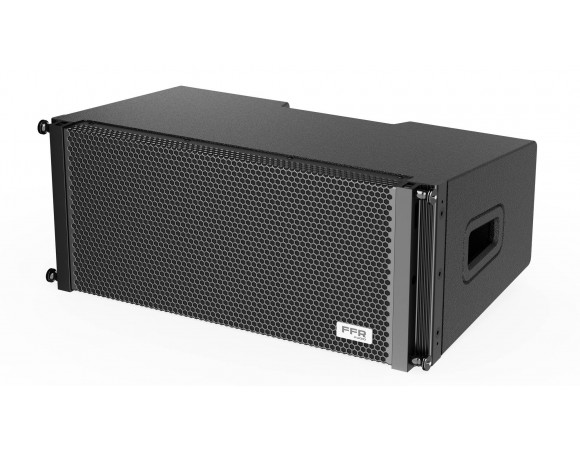

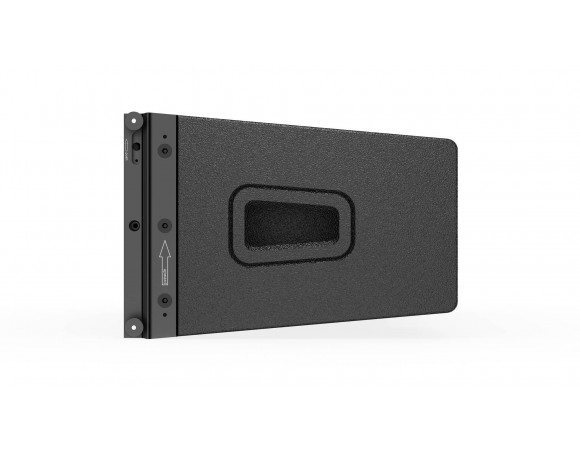

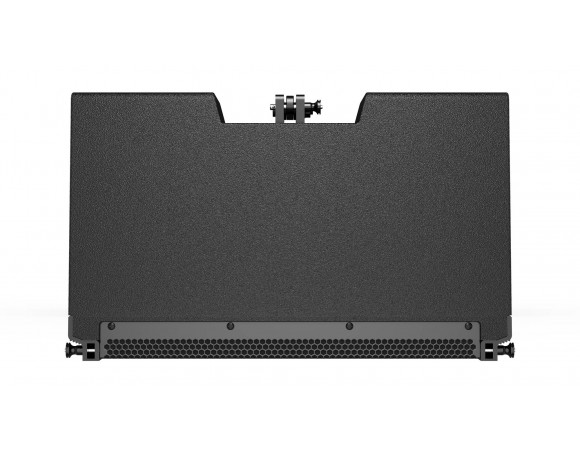

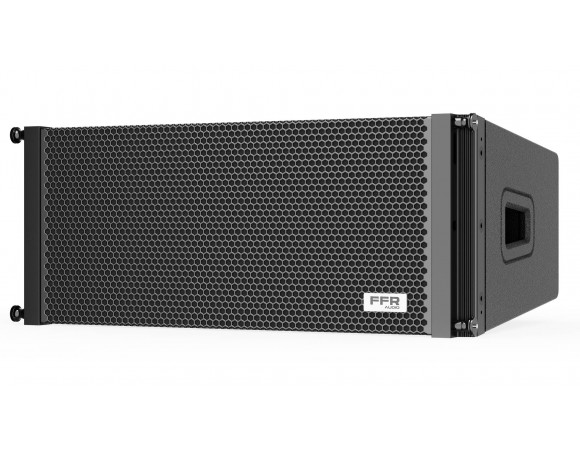

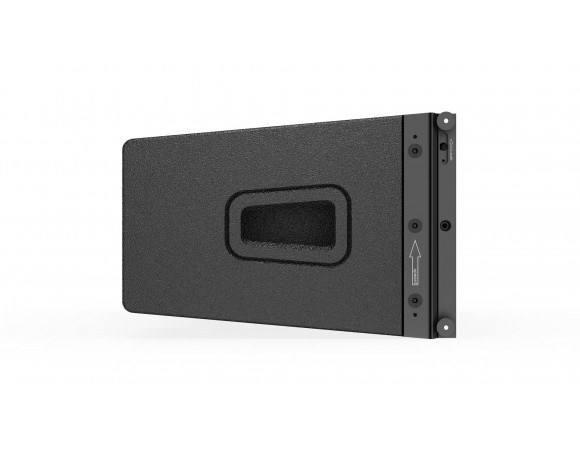

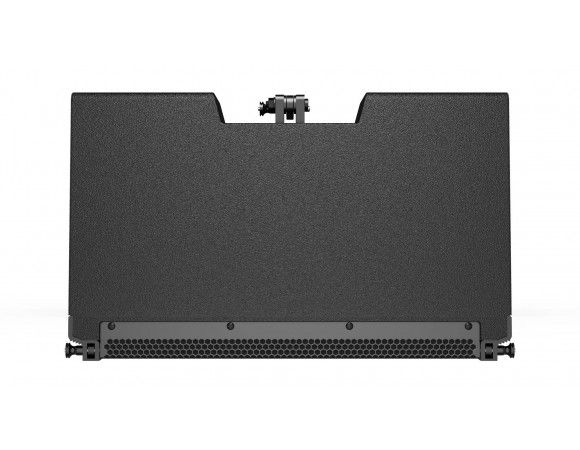

Type: 4-unit 2-way line array speaker
Components:HF:2x1.4″;LF:2x8″
Coverage Pattern(-6dB):90°H×80°V
Frequency Response(-10dB)：65Hz—20KHz
Sensitivity(1W@1m):103dB
Max SPL (peak):136dB
Impedance:16 ohms
Power Handling(AES/Peak):450W/ 1800W
Frequency division mode:Passive

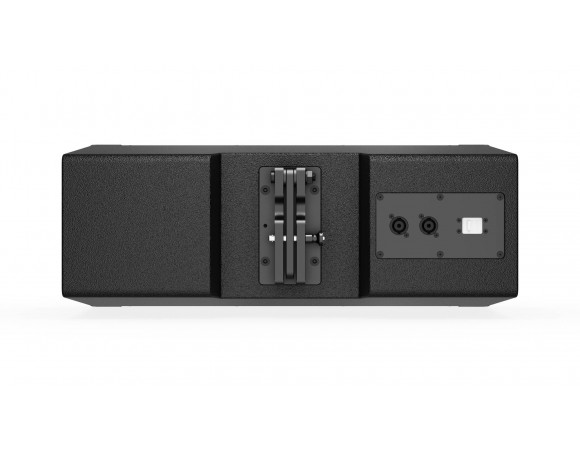

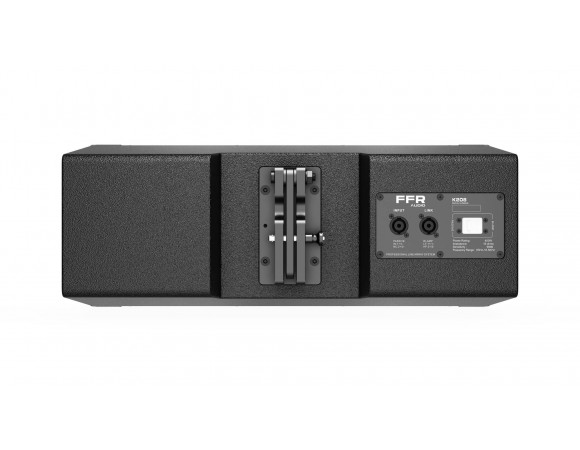

Connector:SPEAKON NL4×2
Box material:15mm Birch plywood
Dimensions:W582mm*D239.2mm*H355mm
Weight:20.95 kg
