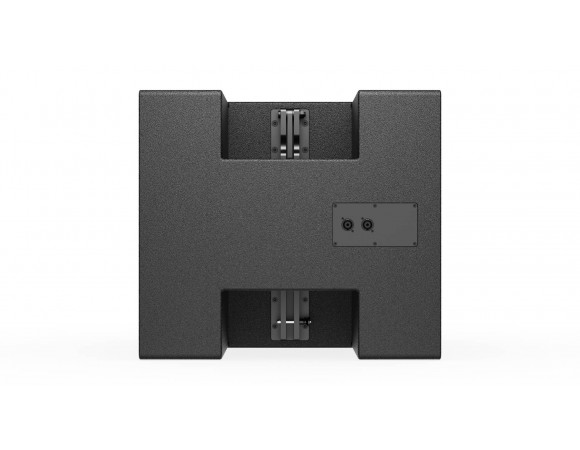

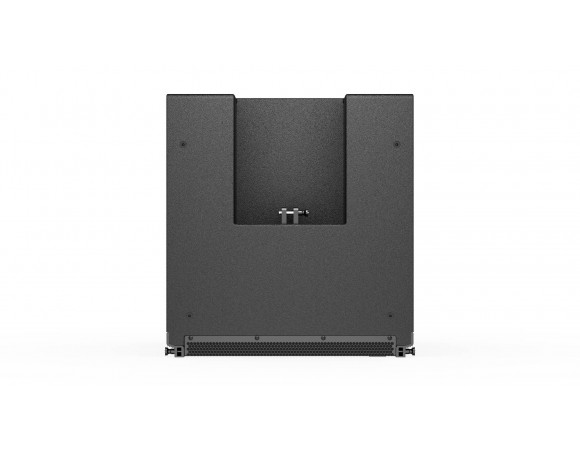

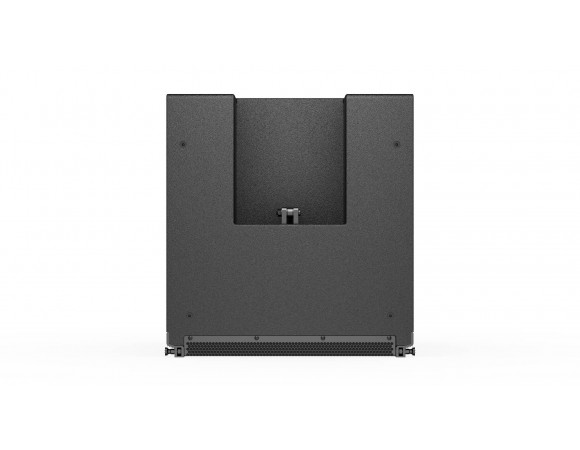

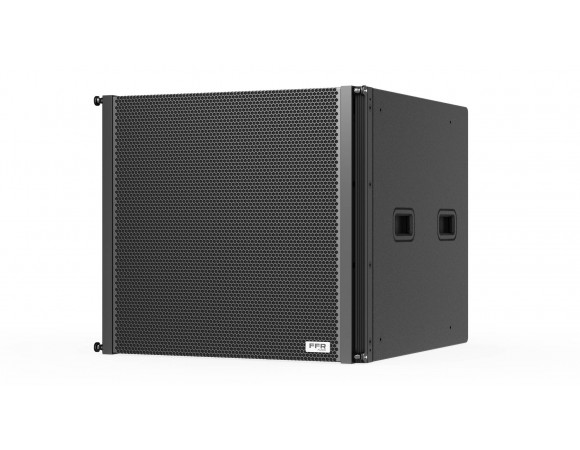

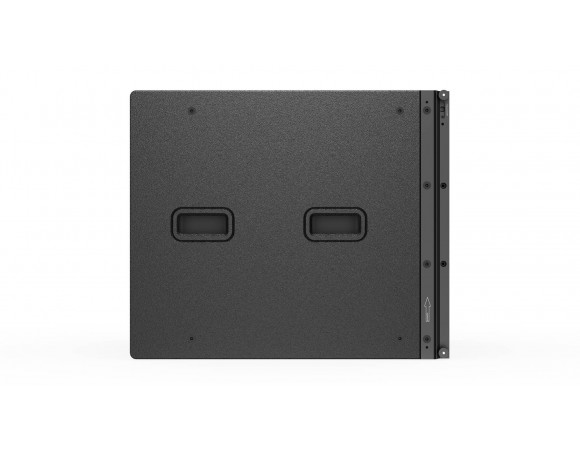

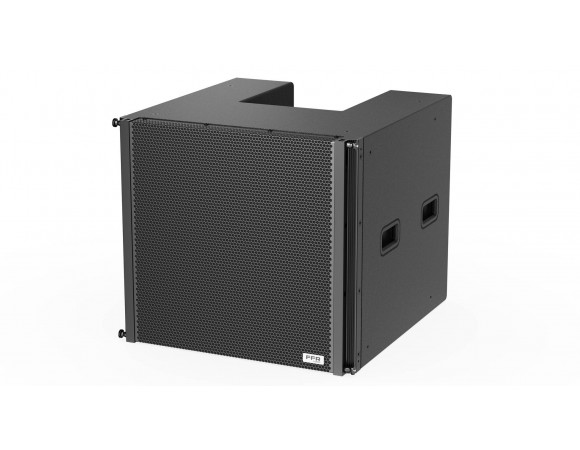

Type: Low frequency line array speaker
Components:LF:1x18″
Coverage Pattern(-6dB):360°
Frequency Response(-10dB)：30Hz—250Hz
Sensitivity(1W@1m):99dB
Max SPL (peak):135dB
Impedance:8 ohms
Power Handling(AES/Peak):800W / 3200W
Frequency division mode:Passive
Connector:SPEAKON NL4×2
Box material:15mm Birch plywood
Dimensions:W582mm*D520mm*H592.5mm
Weight:39.1 kg
