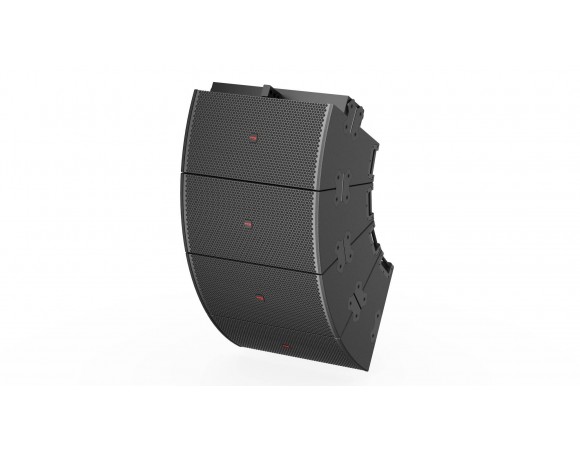

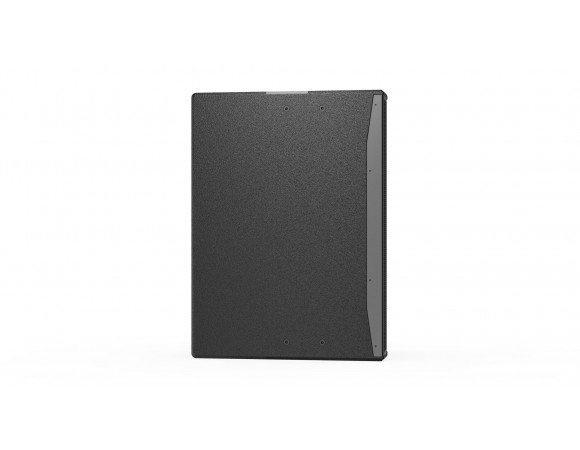

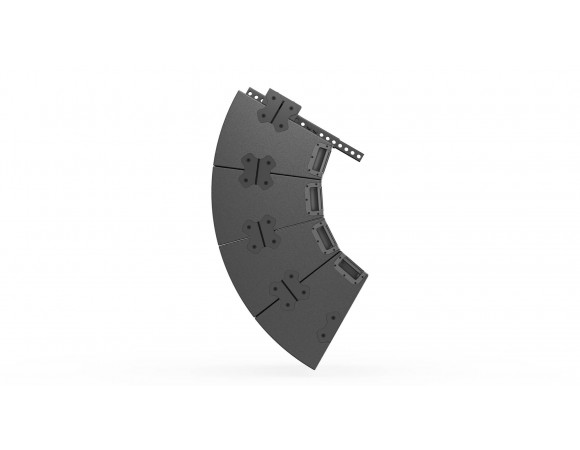

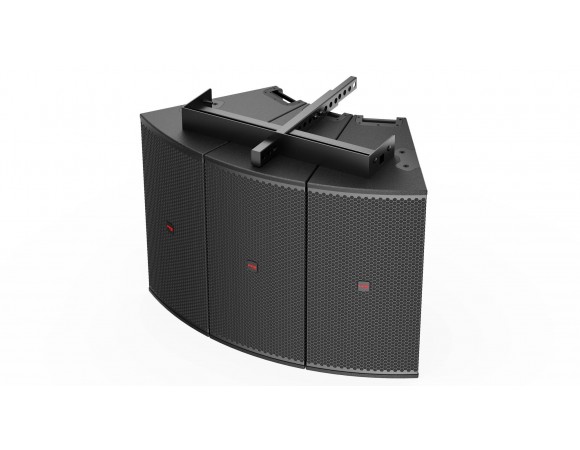

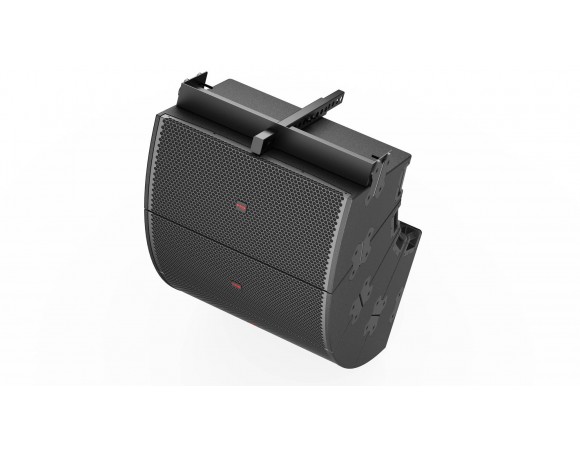

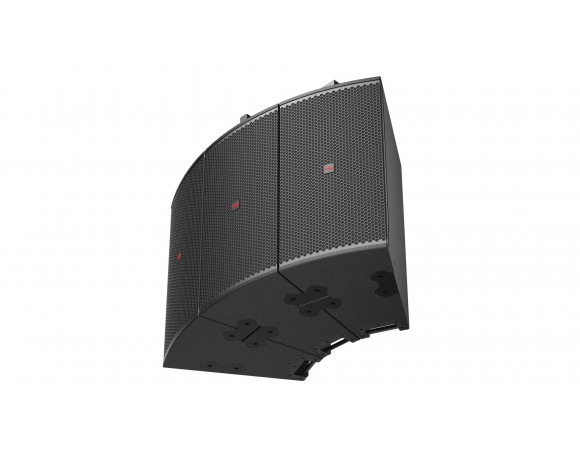

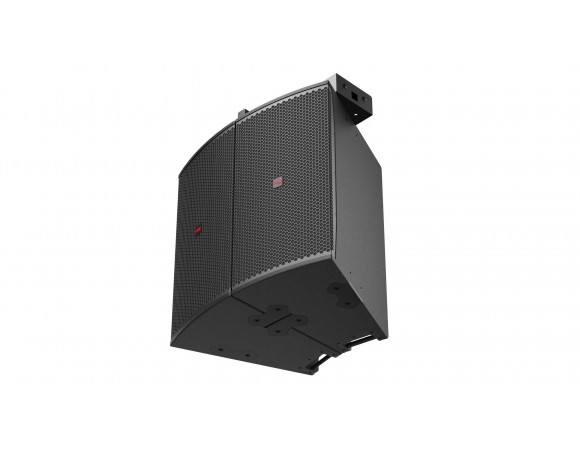

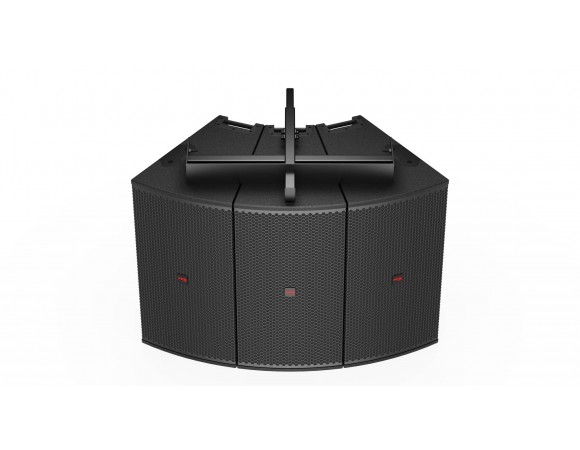

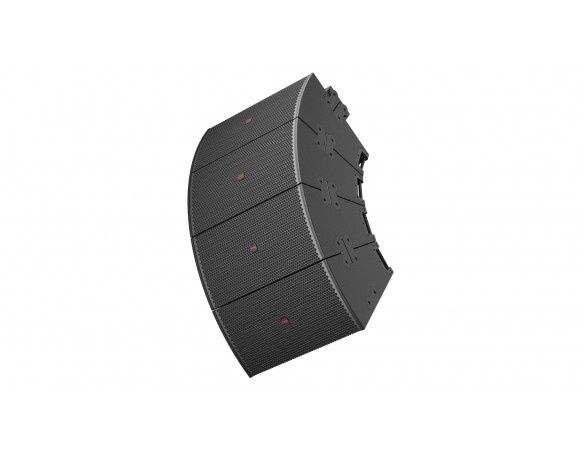

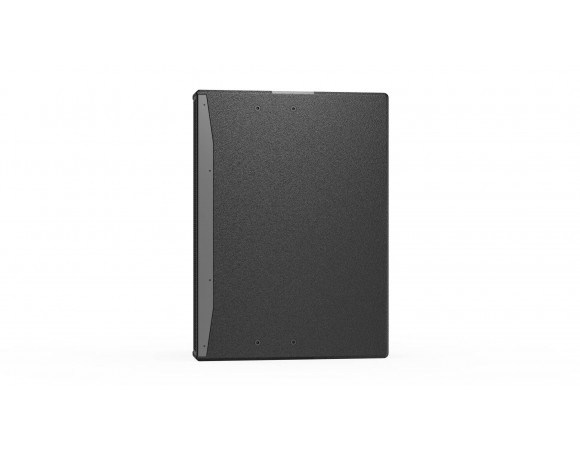

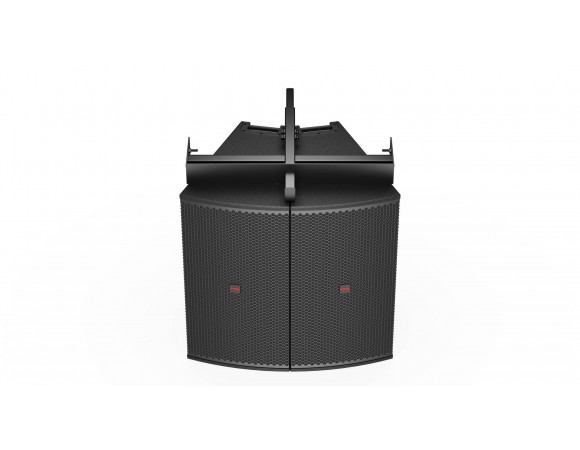

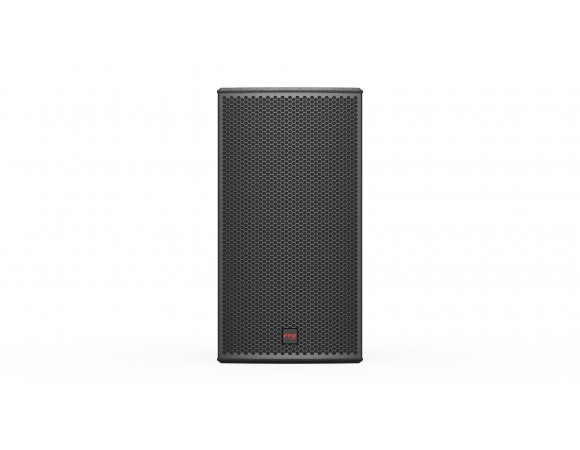

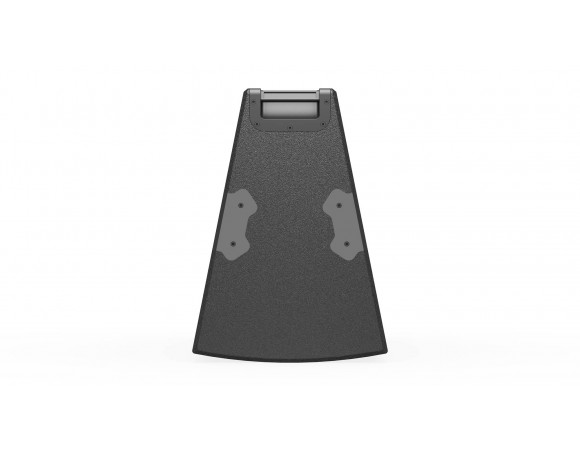

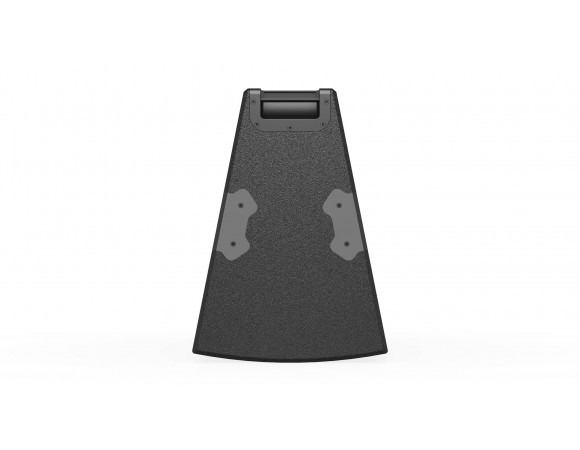

Type: 2-unit 2-way matrix speaker
Components:LF:1x15″neo;HF:1x3″neo
Coverage Pattern(-6dB):22.5°H×60°V(-20°/+40°)
Frequency Response(-10dB):LF:45Hz—3kHz;HF:500Hz—20kHz
Sensitivity(1W@1m):LF:99dB/ HF:113dB
Max SPL (peak):137dB
Impedance:8 ohms
Power Handling(AES):LF:500W，HF:120W
Frequency division mode:DSP

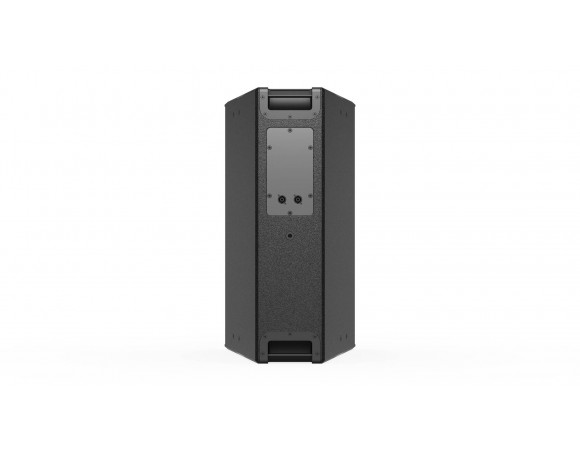

Connector:Speakon NL4×2
Box material:18mm Birch plywood
Dimensions:W424mm x D595mm x H800mm
Weight:47.82kg
