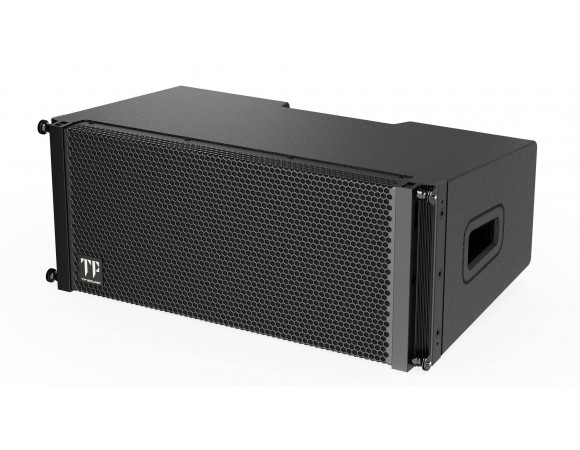

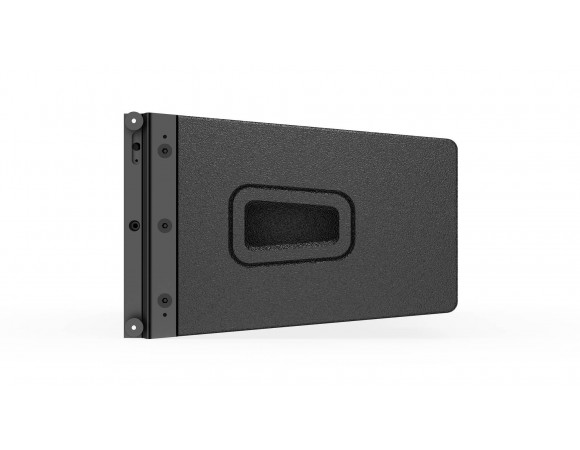

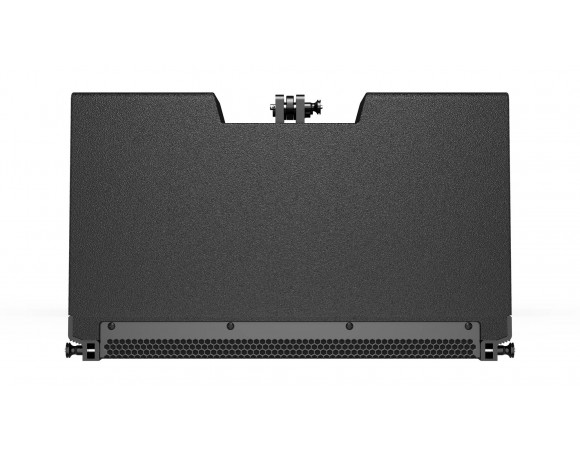

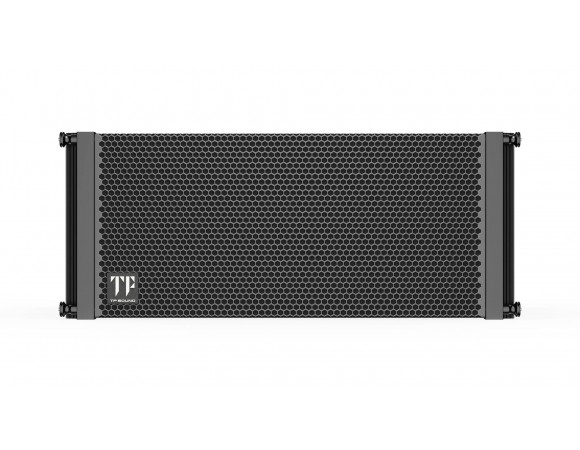

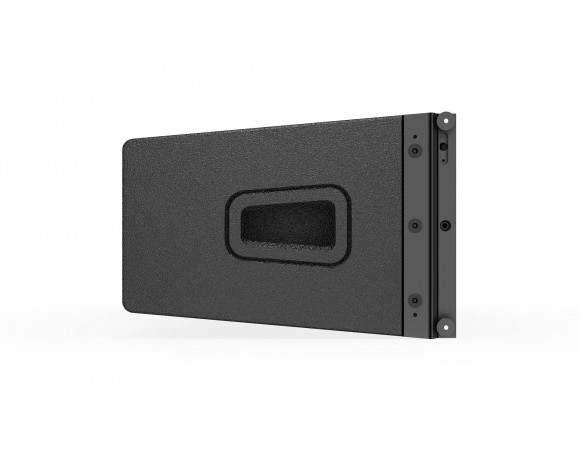

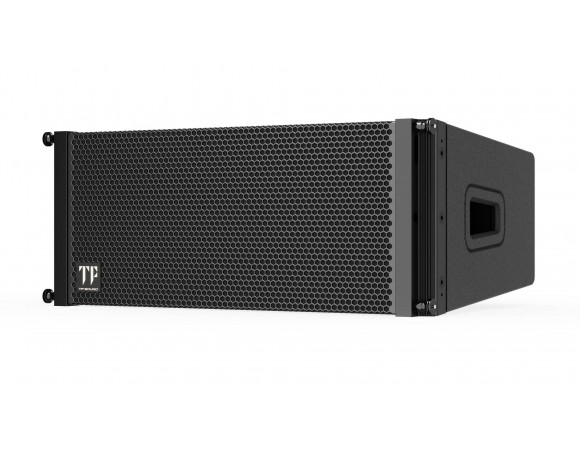

Type: 4-unit 2-way line array speaker
Components:HF:2x1.4″;LF:2x8″
Coverage Pattern(-6dB):90°H×80°V
Frequency Response(-10dB)：65Hz—18.5KHz
Sensitivity(1W@1m):109dB
Max SPL (peak):134dB
Impedance:16 ohms
Power Handling(AES):400W
Frequency division mode:Passive DSP
Connector:SPEAKON NL4×2
Box material:15mm Birch plywood
Dimensions:W593mm*D354.5mm*H239.2mm
Weight:30.76 kg
