Type:2-unit 2-way speaker
Components:HF:1x1″;LF:1x8″
Coverage Pattern(-6dB):90°H×90°V
Frequency Response(-10dB)：58Hz—20KHz
Sensitivity(1W@1m):95dB
Max SPL (peak):123dB
Impedance:8 ohms
Power Handling(AES):200W
Frequency division mode:Passive

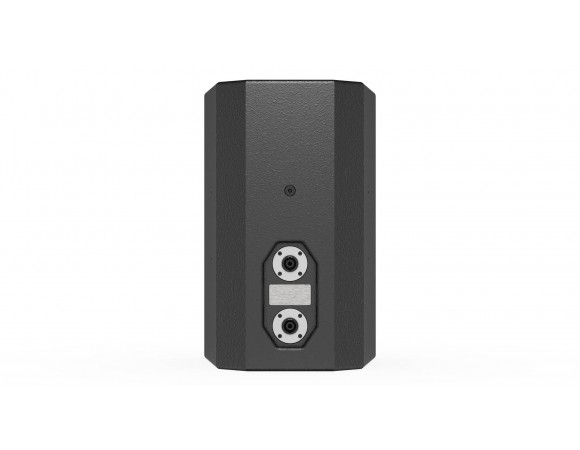

Connector:SPEAKON NL4×2
Box material:12mm MDF
Dimensions:W270*D264*H420mm
Weight:8.5kg
