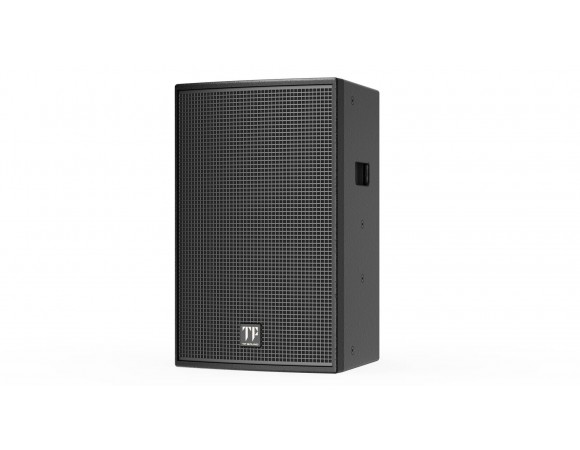

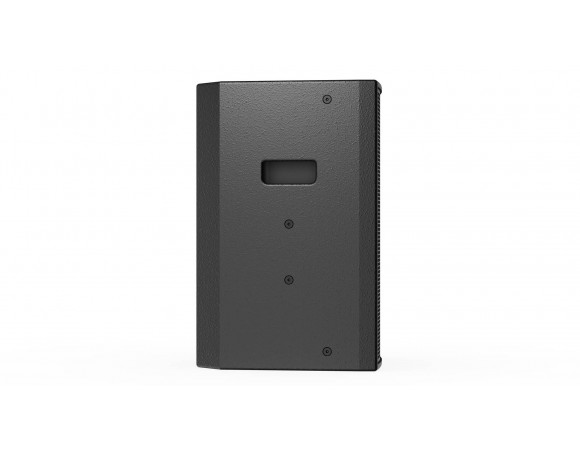

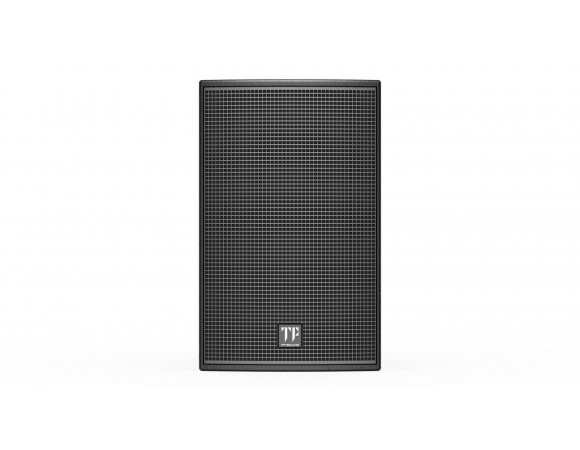

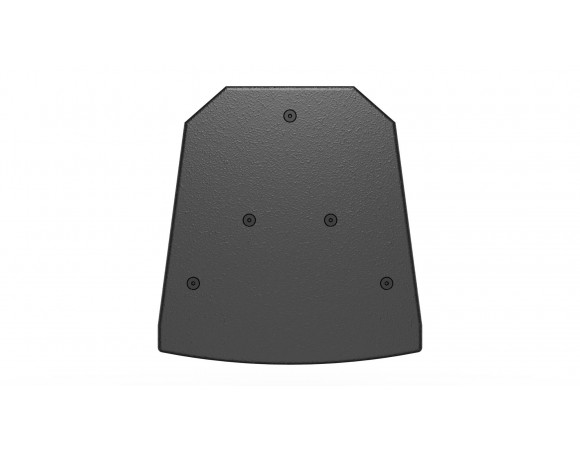

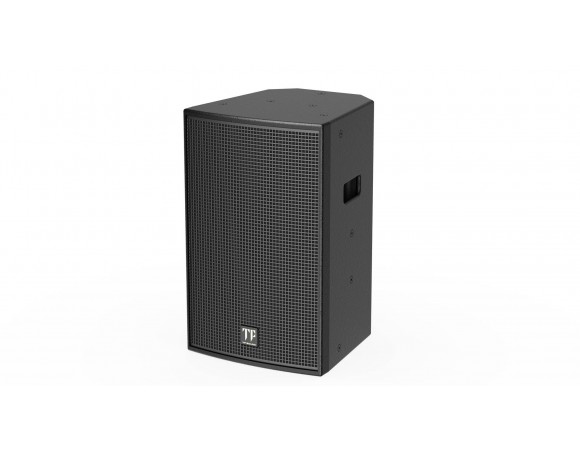

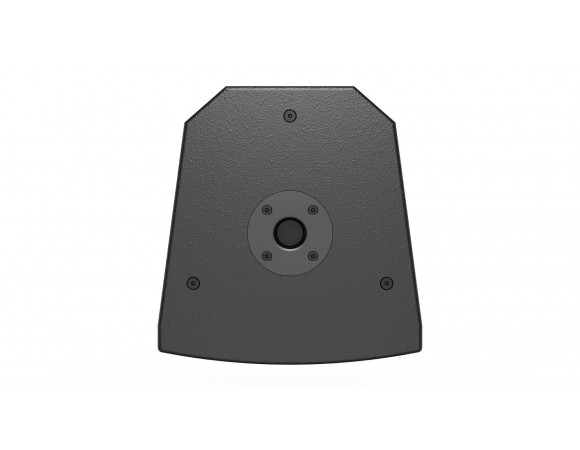

Type:2-unit 2-way speaker
Components:HF:1x1.3″;LF:1x10″
Coverage Pattern(-6dB):90°H×90°V
Frequency Response(-10dB)：57Hz—20KHz
Sensitivity(1W@1m):96dB
Max SPL (peak):127dB
Impedance:8 ohms
Power Handling(AES):300W
Frequency division mode:Passive

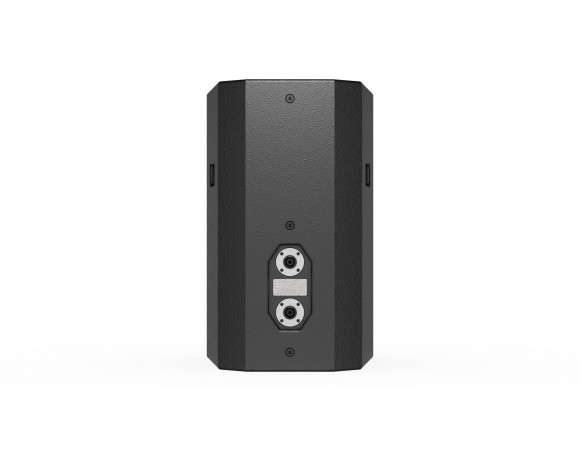

Connector:SPEAKON NL4×2
Box material:15mm MDF
Dimensions:W326*D465*H690mm
Weight:13.40kg
