Type:2-unit 2-way speaker
Components:HF:1x1.7″;LF:1x12″
Coverage Pattern(-6dB):90°H×40°V
Frequency Response(-10dB)：56Hz—20KHz
Sensitivity(1W@1m):97dB
Max SPL (peak):129dB
Impedance:8 ohms
Power Handling(AES):400W
Frequency division mode:Passive

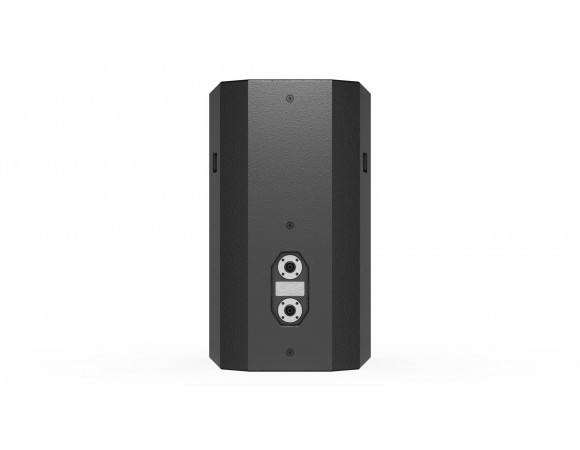

Connector:SPEAKON NL4×2
Box material:15mm MDF
Dimensions:W367.5*D390*H605mm
Weight:19.85kg
