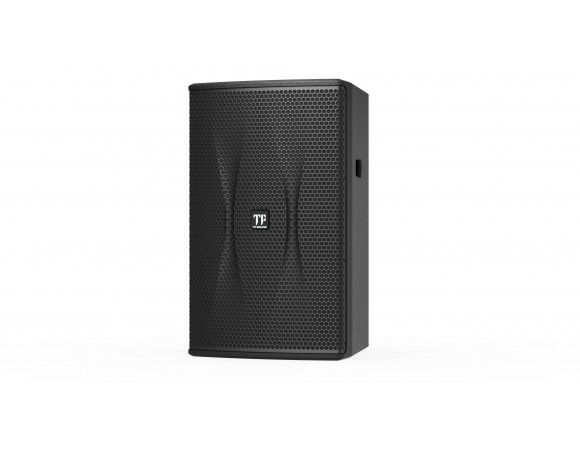

Type:2-unit 2-way rear-guide speaker
Components:HF:1x1.7″neo(B&C);LF:1x12″neo
Coverage Pattern(-6dB):90°H×60°V
Frequency Response(-10dB):48Hz—20KHz
Sensitivity(1W@1m):98dB
Max SPL (peak):131dB
Impedance:8 ohms
Power Handling(AES/Peak):600W /2400W
Frequency division mode:Passive
Connector:SPEAKON NL4×1
Box material:15mm Birch plywood
Dimensions:W366mm*D392mm*H610mm
Weight:21.30kg
