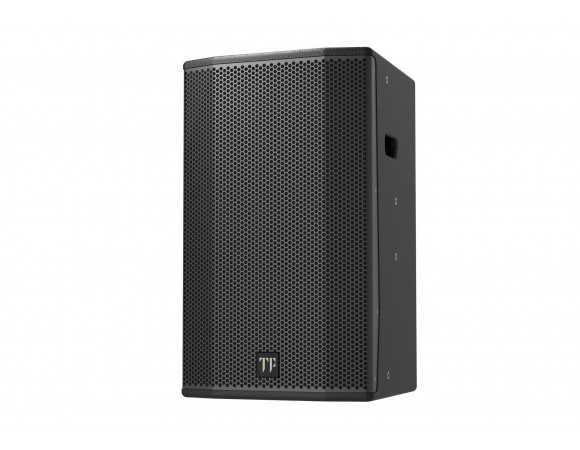

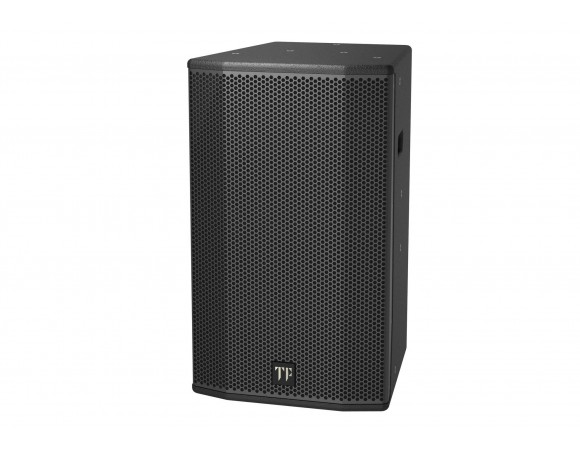

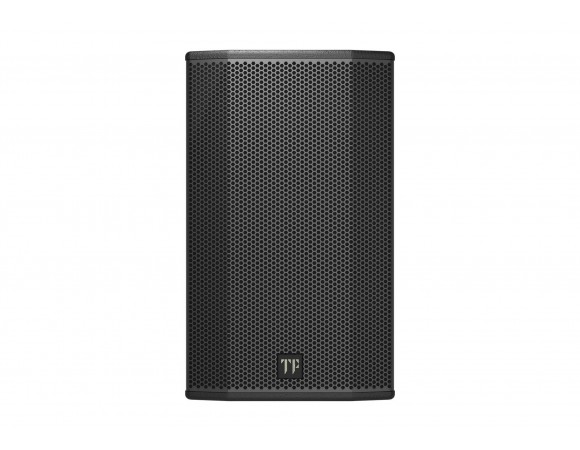

Type:2-unit 2-way rear-guide speaker
Components:HF:1x1.7″(LAVOCE);LF:1x12″
Coverage Pattern(-6dB):90°H×60°V
Frequency Response(-10dB):50Hz—20KHz
Sensitivity(1W@1m):97dB
Max SPL (peak):129dB
Impedance:8 ohms
Power Handling(AES/Peak):450W /1800W
Frequency division mode:Passive

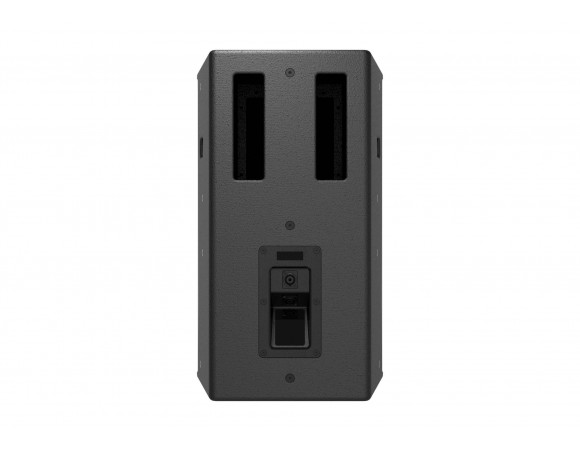

Connector:SPEAKON NL4×1
Box material:15mm Birch plywood
Dimensions:W366mm*D390mm*H605mm
Weight:21.80kg
DOWNLOAD DATA
