Type: Low-frequency speaker
Components:LF:1x18″
Coverage Pattern(-6dB):360°
Frequency Response(-10dB)：45Hz—300Hz
Sensitivity(1W@1m):101dB
Max SPL (peak):136dB
Impedance:8 ohms
Power Handling(AES):800W
Frequency division mode:Passive

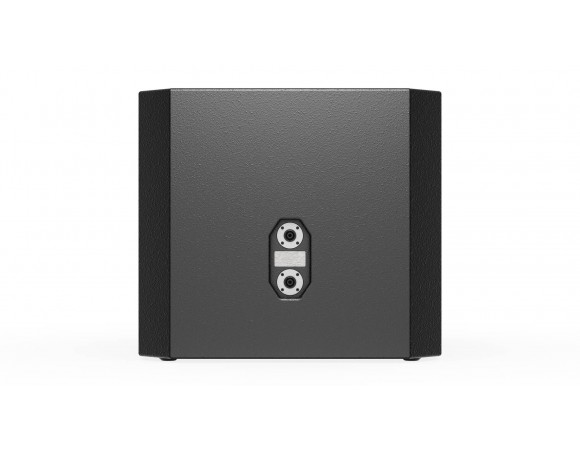

Connector:SPEAKON NL4×2
Box material:18mm Birch plywood
Dimensions:W595mm*D700mm*H520mm
Weight:41.45kg
